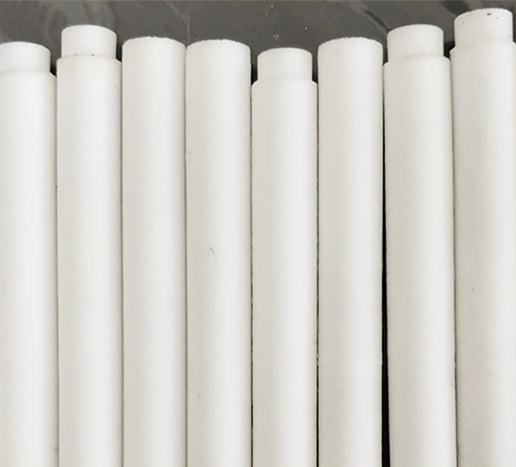

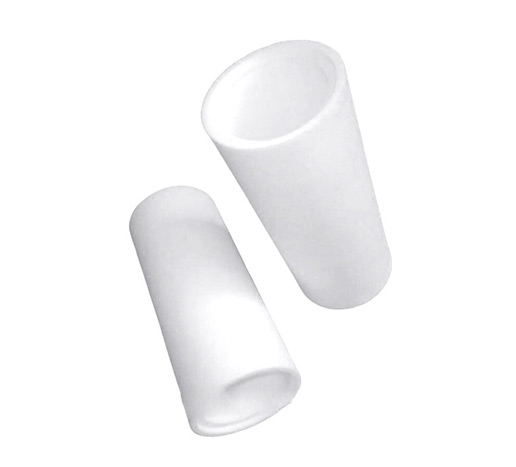

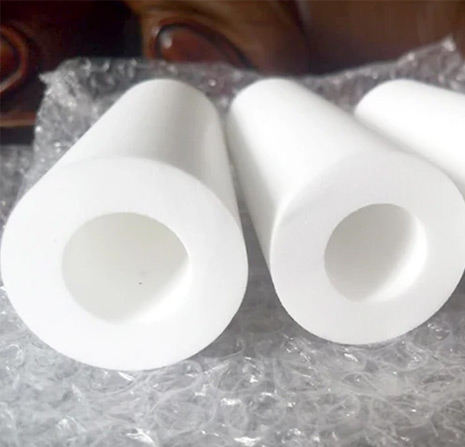

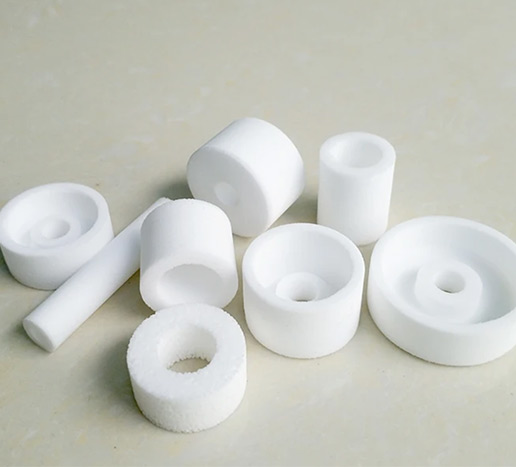

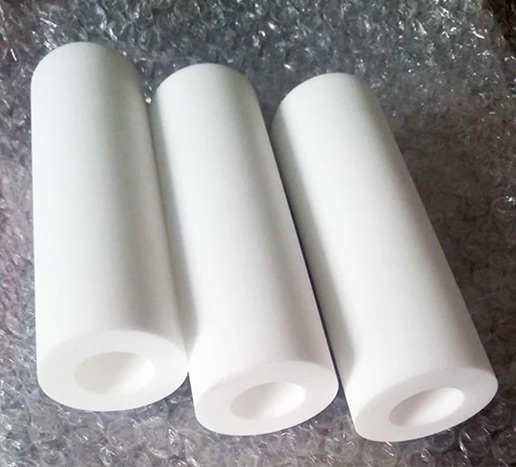

Product specification of PE sintering filter elements:
Accuracy range: 0.3-150um,
Pipe diameter range: 10mm-120mm.
Various specifications filter board, filter screen, filter film, filter If there are special needs can request customized.
Whatsapp:
+8613569807092E-mail:
sales@world-filters.comThe PE sintering filter element is formed by ultra-high molecular weight polyethylene, which is compact, strong, light, can withstand high filtration pressure, non-toxic and tasteless, and has good corrosion resistance to acid-base solvents.The pe sintering filter element is mainly used for the filtration and sewage treatment of pure water, domestic water, beverage, medical treatment, electroplating solution, emulsion, washing liquid, washing liquid, acid and alkali solution and other liquids, which can not only filter out the suspended matter in the liquid, but also remove the chlorine, organic impurities, color and odor in the liquid. Characteristic.
PE with UHWM-PE as the main medium has non-toxic and odor, no foreign body dissolution, and physiological safety, which meets the requirements of GMP.
Chemical properties: pe filter medium has excellent corrosion resistance, resistance to all kinds of non-strong oxidation acid, alkali resistance, aldehyde resistance, fatty hydrocarbons, radioactive radiation resistance, chemical properties are very good, organic solvent resistance is also very good, below 80℃, ester one and ether and other organic solvents.
Temperature resistance: the maximum 30min saturated steam resistance temperature can reach 130℃, and the long-time continuous use of pe does not exceed 80℃.
Mechanical properties: with good toughness and strength, impact resistance, installation and transportation is not easy to damage.
Filtering performance: the highest filtration accuracy can reach 0.3 microns, high filtration efficiency, and the control of the starting pressure can effectively remove solid particles below 0.3 microns.
Physical properties: the medium specific gravity is light, and the theoretical specific gravity is about 0.5-0.7g/ml.
Regeneration performance: pe medium pores have the elasticity of micro expansion, which can be combined by water pressure, air pressure or water-air pressure for efficient reverse cleaning and regeneration.It can use the appropriate concentration of acid to chemical dissolve and regenerate the blockage, so that the filtration performance of the medium is restored as before, and improve the service life of the medium.
Processing performance: secondary processing can be conducted by car, milling, plane, ironing, hot melt welding and bonding.
Pharmaceutical industry: decharcoal filtration of large infusion water needle and pharmaceutical intermediates; filtration of fermentation liquid, oral liquid, biopharmaceutical, traditional Chinese medicine, etc.; Chemical industry: aluminum hydroxide, alumina, palladium catalyst, phosphor powder, zinc carbonate, sodium carbonate solution, barium sulfate, zinc sulfide, cadmium sulfide, and other filtration and washing; Brewing industry: beer, medicinal wine, white wine, liquor and other filtration; Electroplating solution filtration; Internal combustion engine cleaning liquid precision filtration; Filtering of oil field washing and well water; Precision filtration of ultra-pure water and vegetation system in the electronic industry field.
Thanks for your interest. To receive more product information, price, catalog, etc. Please fill out the form bellow. We will get back to you within 24 hours.

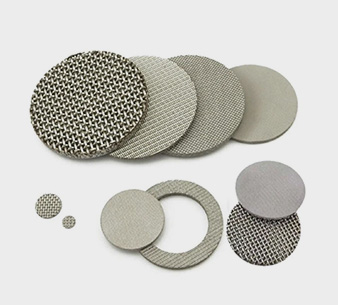

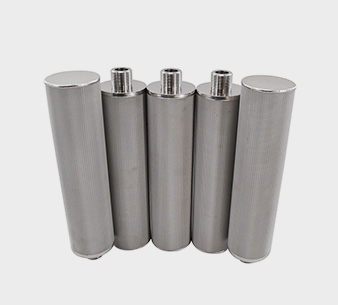

For more than 30 years, we have provided high quality filtration products to domestic and foreign customers, such as SS316L sintered fiber felts, SS316L multilayer wire mesh, SS312 sintered fiber felts, sintered special performated screen, sintered metal powder elements, and other sintered filter materials, filter elements and filtration equipment systems.
