Standard material: SUSS316L,SUS304.
Standard specification:1000mmx500mm,1200mmx600mm 1000mmx1000mm,1200mmx1200mm,1500mmx1200mm,which can also be ordered according to customer requirements.
Filtering accuracy: 1- -300um.
Special specifications can be supplied according to the requirements of the demander.
Whatsapp:
+8613569807092E-mail:
sales@world-filters.comStandard five-layer sintered wire mesh is five layers of stainless steel wire mesh superimposed, vacuum sintering.The filter element made of it has the characteristics of strong corrosion resistance, good permeability, high strength, easy cleaning and reverse cleaning, accurate filtration precision, filter material cleaning, screen does not fall off.

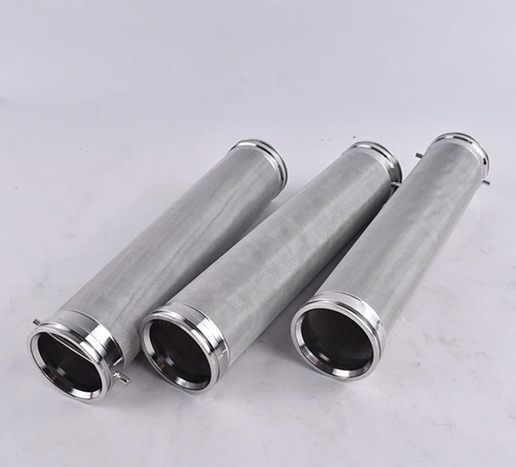

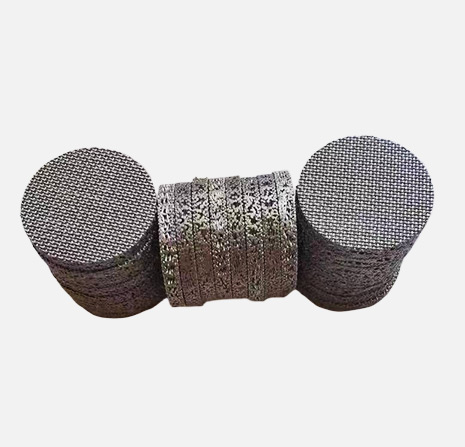

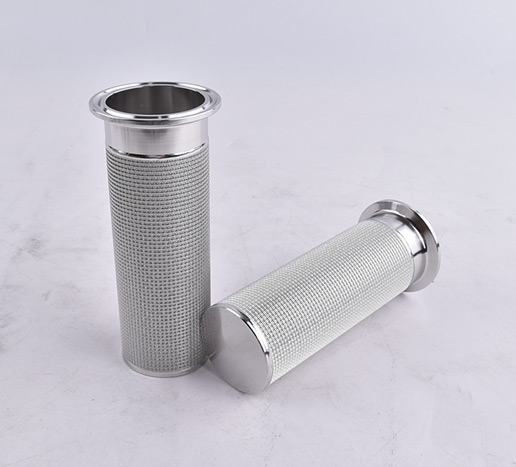

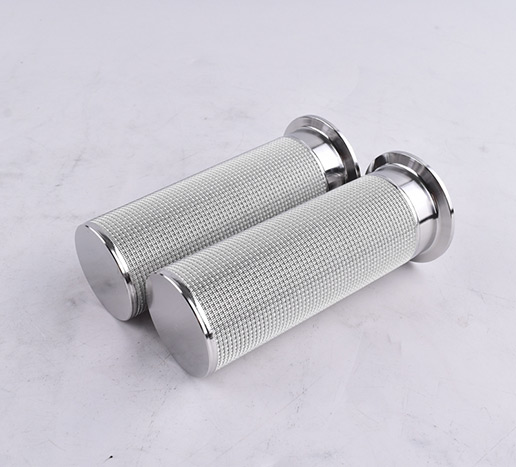

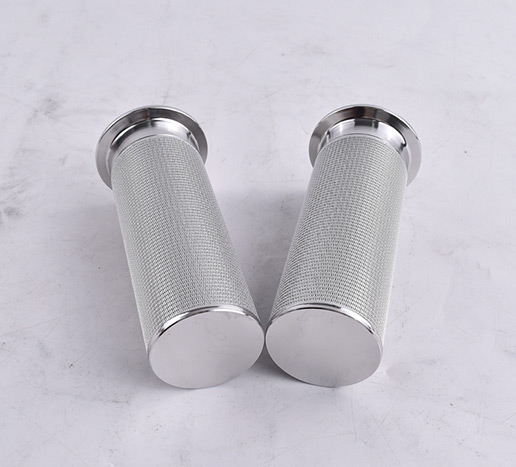

It is generally a five-layer structure, divided into four parts: protective layer, filter layer, separation layer, separation layer and support layer. This kind of filter material has both uniform and stable filter accuracy and high strength and stiffness, which requires high compressive strength and is an ideal filter material.Because its filtration mechanism is surface filtration, and the mesh hole is smooth, so it has excellent backwashing and regeneration performance, can be used repeatedly for a long time, especially suitable for continuous and automatic operation process, is no filter material can be compared.The sintering net material is easy to shape, process and weld, and can be easily processed into circular, cylindrical, cone, corrugated and other forms of filter elements.
Heat resistance: durable for continuous filtration from-200 degrees up to 650 degrees.

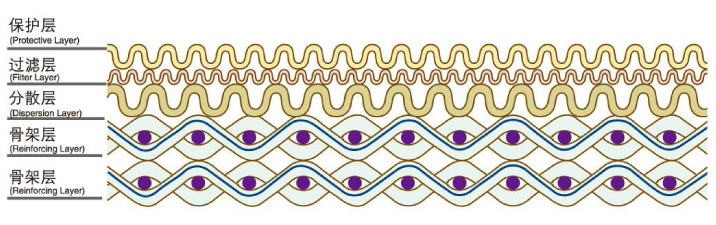

The fifth layer of sintering net is composed of protective layer, filter layer, dispersed layer and skeleton layer.
High strength: five layers of mesh sintering, with extremely high mechanical strength and compressive strength.
High precision: the filter particle size of 2 to 200um can play a uniform surface filtration performance.
Cleaning: due to the countercurrent cleaning effect.
Good permeability, high strength, no need to add the support structure,there is no material falling off phenomenon, strong corrosion resistance, easy to clean, not easy to damage.
1.Used for dispersed cooling material in high temperature environment.
2.Used for gas distribution and liquid chemical bed hole plate material.
3.Used for high-precision, high-reliability and high-temperature filtration materials.
4. Used for high-pressure backwash oil filter.
Thanks for your interest. To receive more product information, price, catalog, etc. Please fill out the form bellow. We will get back to you within 24 hours.
For more than 30 years, we have provided high quality filtration products to domestic and foreign customers, such as SS316L sintered fiber felts, SS316L multilayer wire mesh, SS312 sintered fiber felts, sintered special performated screen, sintered metal powder elements, and other sintered filter materials, filter elements and filtration equipment systems.
