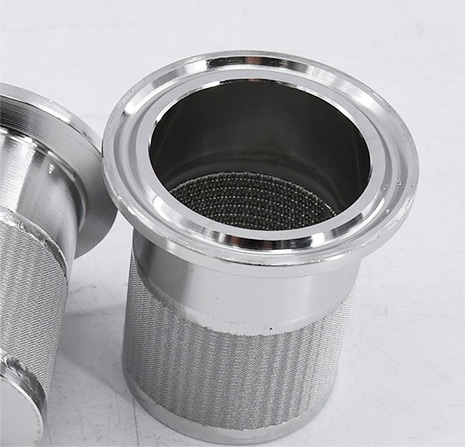

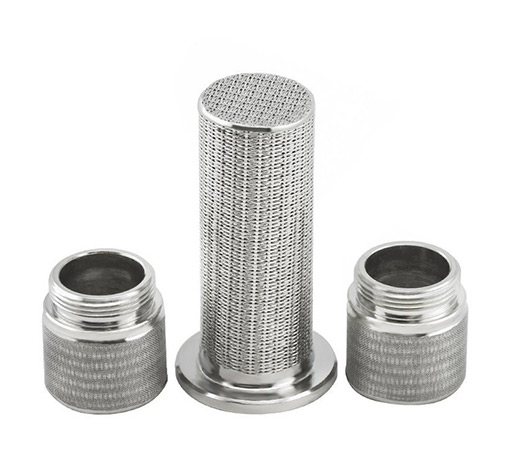

Stainless Steel Sintered Mesh Filter Parameters Specifications
standard material: SUS304, SUS316L; SUS punching plate sintering mesh;
standard caliber: 25, 32, 40, 50, 65, 80, 100, 150, 180mm, etc.
filtering accuracy: 2-100um;
standard size: 100-1500mm, specifications can be formulated according to customer requirements;
interface type: 222.220, 222.226, 215. M36、 M28、 M24、 M22、 M20 Standard interface, thread interface, custom interface, rod connection, flange connection, fast connection, etc. system
temperature resistance: 480C
Whatsapp:
+8613569807092E-mail:
sales@world-filters.comStainless steel sintered mesh filter generally adopts 5 layers or multi-layers 316 stainless steel metal mesh sintered by vacuum sintering furnace, sintering process according to the needs of different users to adjust, such as customer precision is 2 micron 5 micro Meter 10 micron and other different precision, then the network sintering process is different. The gap of 316 metal mesh after sintering is exactly the customer needs precision to be qualified, the new source of environmental protection after many years of experience product Tired can ensure the accuracy and ductility of the user's use precision.
Product selection is not appropriate. In the filter selection, if the selection of the filter is not suitable for the current stage of the working environment, the filter accuracy is too high, the force exceeds the maximum working pressure of SSH, it will cause the filter the generation of suction flatness.
The product is improperly installed. The installation of the filter should be accurate and stable, and if the filter is not fixed, it has started the filter work, and then the filter will be destroyed.
The product is blocked, did not replace in time. The filter element is seriously blocked by pollutants in the work and has not been cleaned in time, resulting in an increase in the pressure difference of the filter elements, and the lack of the strength of filter elements causes the filter to suck flat.
Stainless steel sintered mesh filter element is mainly used for F Pharmaceutical & Food Processing, Petrochemical, Oilfield Pipeline, Water Treatment Industry Equipment, Refuelling equipment, Construction machinery and equipment fuel, etc., There will be contamination after a period of time, it needs To be cleaned, depending on the contamination and the contaminant's chemical Property well in combination with the use of no The physical and chemical properties of the lower rusty steel can be respectively treated by physical Methods and chemical methods for regeneration cleaning.

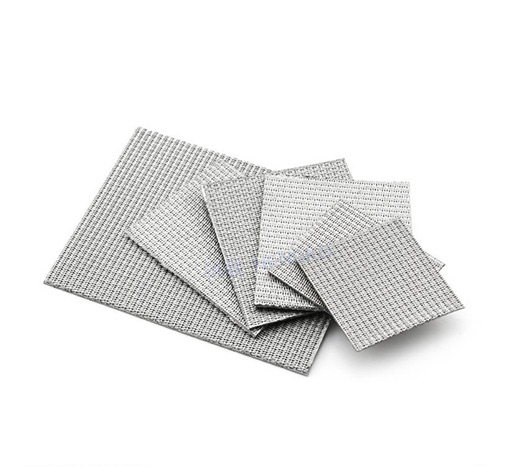

When it comes to sintering mesh filter will talk about the production process of sintering mesh, sintering mesh is the same or different multiple single-layer stainless steel wire woven mesh stacked in - up, after sintering, pressure, rolling and other processes, using vacuum sintering To 1300 ° C after the diffusion of solid solution made, with high mechanical strength and overall rigidity of the new filter material. The widely used sintering nets are five-layer and six-layer sintering nets.
Xinxiang production of stainless steel sintered filter manufacturers are not many, Xinyuan environmental protection as the source of manufacturers can provide users with sintering filter customized processing, material mainly used 316 stainless steel and 316L material, to absorb 304 stainless steel material sintered, sintered filter height and inner diameter and outer diameter can be customized according to the actual needs of users, with high temperature characteristics. Stainless steel sintered mesh filter element main filter material selection standard Layer sintered mesh. Standard five-layer sintered mesh is a five-layer stainless steel wire mesh superimposed by vacuum sintering. The filter element made of the utility model has the advantages of strong corrosion resistance, good permeability, high strength, easy cleaning and anti-cleaning, and filtering precision. Accurate, clean filter, screen does not fall off and so on.
Products
| Filtration accuracy(um) | Bubble point pressure(Pa)±8% | Breathability(L/min/dm2) | Thickness(mm) |
| 5 | 5000 | ≥200 | 1.7 |
| 10 | 3700 | ≥250 | 1.7 |
| 15 | 2600 | ≥350 | 1.7 |
| 20 | 1950 | ≥450 | 1.7 |
| 30 | 1230 | ≥550 | 1.7 |
| 40 | 1020 | ≥650 | 1.7 |
| 50 | 860 | ≥750 | 1.7 |
| 70 | 690 | ≥900 | 1.7 |
| 100 | 630 | ≥950 | 1.7 |
