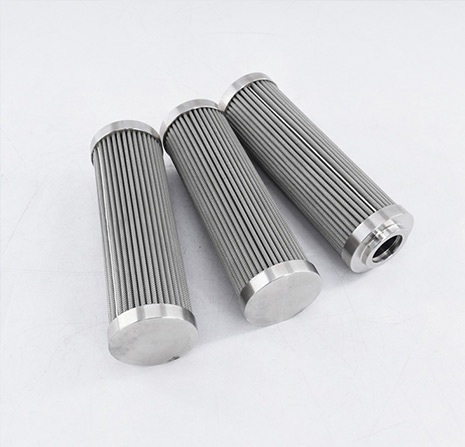

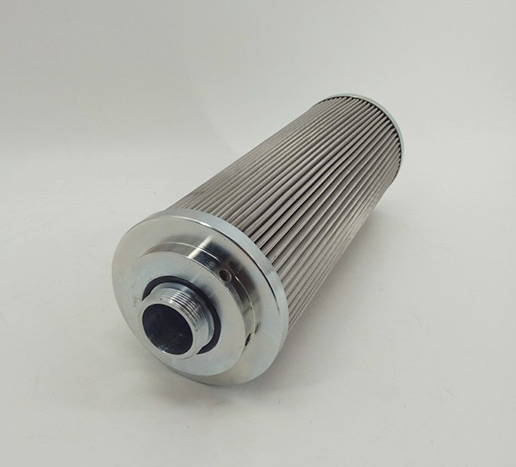

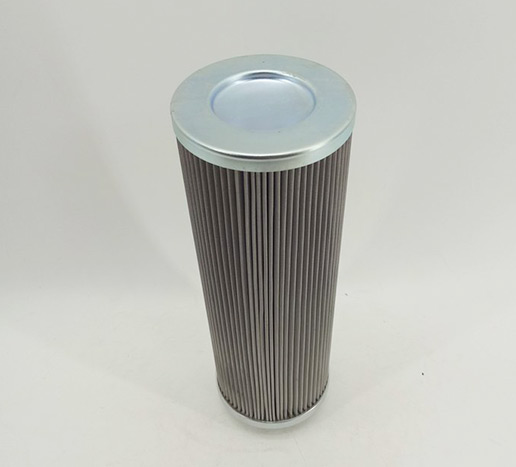

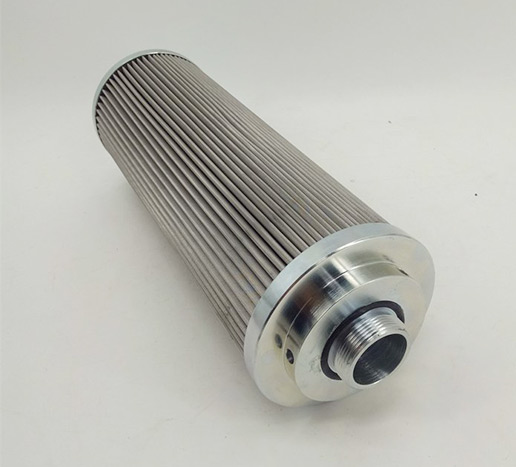

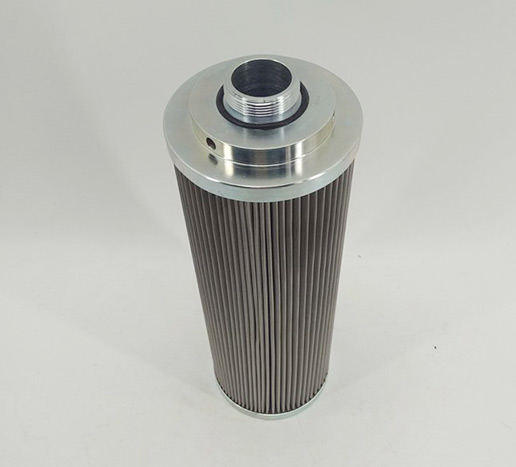

Material: stainless steel woven mesh, sintering mesh, iron woven mesh;
Filter media: fiberglass filter paper, chemical fiber filter paper and wood pulp filter paper;
Features: Made of single-layer or multi-layer metal mesh and filter material, the number of layers and the mesh of the screen depends on the different use conditions and uses. High concentric ratio, high pressure, good straightness, stainless steel, without any burr, ensure long service life.
Therefore, the selection of stainless steel oil filter media should be based on the different working environment and the cost performance of the customer.
Whatsapp:
+8613569807092E-mail:
sales@world-filters.comStainless steel oil filter, as the name implies, is generally used in the hydraulic system or oil filter filter, its role is to filter the impurities inside the hydraulic oil, ensure the clean hydraulic oil and the smooth operation of the system. So in the choice of stainless steel oil filter when choosing what material is better?
The oil filter is divided into: pressure pipeline hydraulic oil filter: pressure pipe oil filter, Not only to protect its downstream components, as the main oil filter to ensure the oil contamination of the system, through its own efficient purification of oil, the hydraulic pump also plays a very good protection role, Filtration precision is 5-10μm, the filter by the pressure, vibration is also very fierce, pressure pipeline oil filter permission differential pressure, according to different pressure levels, range in 0.3 ~ 0.7 MPa. As the ground equipment with pressure pipeline oil filter, considering the cost, installation space, can be large.
General stainless steel oil filter used in the filter material is high quality glass fiber, because the glass fiber is sharp, can break the oil spore, can better filter the impurities in the oil, And the precision range of glass fiber is wide can choose different filtering precision according to different environment, moreover is glass fiber compared with other metal material price is cheaper, so stainless steel oil filter element using glass fiber filter material cost is higher.
Stainless steel oil filter sometimes filter media is not ordinary hydraulic oil, there will be a certain corrosive or high working temperature, so you can not use glass fiber, To use stainless steel metal mesh, and the material of glass fiber is relatively brittle, belong to disposable filter material, when the filter is blocked is not reusable, to be replaced in a timely manner, if stainless steel material can be reused.
Thanks for your interest. To receive more product information, price, catalog, etc. Please fill out the form bellow. We will get back to you within 24 hours.
For more than 30 years, we have provided high quality filtration products to domestic and foreign customers, such as SS316L sintered fiber felts, SS316L multilayer wire mesh, SS312 sintered fiber felts, sintered special performated screen, sintered metal powder elements, and other sintered filter materials, filter elements and filtration equipment systems.
