Regular size: 1000mm×500mm、1000mm×600mm、1000mm×1000mm、1200mm×1000mm.
Scalable dimensions: 1000mm×1480mm.
Standard material: 316L, 304, 310S. the dimensions in the above range can be customized according to the user requirements.
Whatsapp:
+8613569807092E-mail:

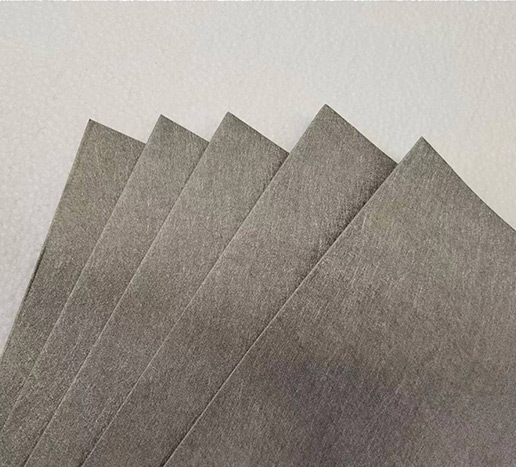

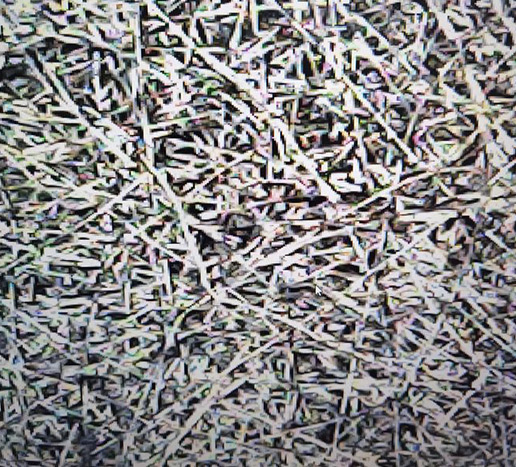

sales@world-filters.comSintered stainless steel fiber felt is made of relatively fine stainless steel fiber (accurate diameter to micron) by non-woven paving, stacked by high temperature sintering.The finished felt forms a pore gradient from different aperture layers, which can control the relatively high filtration accuracy and greater pollution amount. It has the characteristics of three-dimensional mesh, porous structure, high porosity, large surface area and uniform aperture size distribution, and can continuously maintain the filtration effect of the filter surface.Due to the above structure and characteristics, the stainless steel sintering felt can effectively make up for the weakness of metal netease blocking, damage, can make up for the shortage of powder filter products fragile, small flow, with ordinary filter paper, filter cloth not comparable to the characteristics of temperature resistance, pressure resistance, so stainless steel fiber sintering felt is ideal high temperature resistance, corrosion resistance, high precision filter materials.
Product application areas: Stainless steel sintering felt has excellent filtration performance, is the ideal high temperature resistance, corrosion resistance, high precision filtration materials, widely used in polymer filtration, petrochemical, electronic high temperature gas dust removal, refining filtration, viscose filtration, filter filter, vacuum pump protection filter, filter membrane support, catalyst carrier, automotive airbags, aircraft and other fuel filtration, hydraulic system filtration.
Large sewage handling capacity, high filtration accuracy, slow pressure rise, and long replacement cycle.
High porosity and excellent permeability, small pressure loss, large flow rate.
Corrosion resistance, high temperature resistance, acid, alkali, organic solvents, drugs, etc. corrosion, can be used in 480℃ environment.
Easy to process, shape and weld.
According to user requirements, reinforced, thickened, protective net and other specifications can be specially produced.
Nowoven sintered fiber felt is used for several (fine, deep or sub micron) filtration applications as followings:
1) Chemical fiber and thin film industry: polyester, polyester, polyester and other polymer melt filtration and purification, making melt filter element, textile parts filter layer.
2) Filter and dust removal of various high-temperature and corrosive gases in petroleum, chemical industry and metallurgy fields.
3) Filtering of various high-temperature and corrosive liquids in petroleum and chemical fields.
4) Precision filtration of hydraulic oil and lubricating oil in machinery, ships, electric power, electronics, aviation, aerospace and other fields.
5) Clarification and filtration of various liquids in the pharmaceutical, biological and beverage industries.
Property of sintered metal fiber felt（SS316L）(standard pressure and high pressure)
|
Type |
Filter rating(um) |
Bubble point pressure(Pa) ±8% |
Air permeability (L/min dm2)±10% |
Porosity(±5%) |
Dirt holding capacity(mg/cm2)(±10%) |
Thickness (mm)(±10%) |
Breaking strength (MPa)(±10%) |
|
SSMF5 |
5 |
6800 |
47 |
75 |
5.0 |
0.30 |
32 |
|
SSMF7 |
7 |
5200 |
63 |
76 |
6.5 |
0.30 |
36 |
|
SSMF10 |
10 |
3700 |
105 |
77 |
7.6 |
0.37 |
32 |
|
SSMF15 |
15 |
2600 |
205 |
80 |
8.0 |
0.40 |
23 |
|
SSMF20 |
20 |
1950 |
280 |
81 |
15.5 |
0.48 |
23 |
|
SSMF25 |
25 |
1560 |
355 |
80 |
18.4 |
0.62 |
20 |
|
SSMF30 |
30 |
1300 |
520 |
80 |
25.0 |
0.63 |
23 |
|
SSMF40 |
40 |
975 |
670 |
78 |
25.9 |
0.68 |
26 |
|
SSMF60 |
60 |
650 |
1300 |
87 |
35.7 |
0.62 |
28 |
