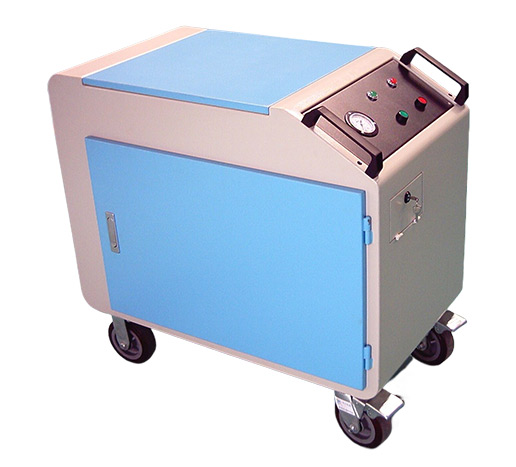

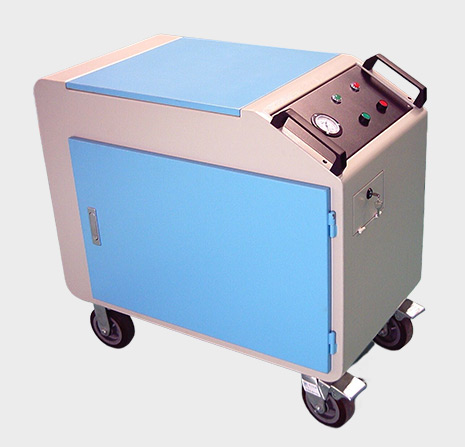

The box type mobile oil filter machine adopts a fully wrapped and refined car body to fully protect all components in the vehicle body, and at the same time protect the equipment from external environmental pollution, especially suitable for occasions with high environmental requirements.
Whatsapp:
+8613569807092E-mail:
sales@world-filters.comThe box type mobile oil filter machine adopts a fully wrapped and refined car body to fully protect all components in the vehicle body, and at the same time protect the equipment from external environmental pollution, especially suitable for occasions with high environmental requirements. This machine can also be equipped with a mailbox type, with a fuel tank, which can directly inject the oil in the self-contained fuel tank into the system after circulating the filter.
This machine includes a special gear pump driven by a motor, featuring low noise, strong self-priming capability and smooth operation. The high pressure pipeline is provided with an overflow protection device to effectively protect the safety of the hydraulic system. Thermal relay protection is used to prevent motor damage caused by motor overload.
The oil filter adopts two-stage filtration, which has a longer service life and is available with a dewatering filter.
Explosion-proof type can be selected to adapt to the occasions of different industries for filtering flammable and explosive media such as gasoline, diesel oil and kerosene.
The wheels are made of high-quality polyurethane wheels, brand-name wheels, running smoothly and without noise.
（1）Filtration of hydraulic lubrication systems when refueling
（2）Bypass filtration when hydraulic lubrication system is in operation
（3）Cyclic filtration before the hydraulic lubrication system is put into operation
（4）The oil of the hydraulic lubrication system is pumped out without the pump （5）Filter of the equipment itself.
Products
| Model | LYC-X35 -*/* | LYC-X50 -*/* | LYC-X100 -*/* |
| Norminal flow rate (L/min) | 35 | 50 | 100 |
| Norminal pressure (MPa) | 0.6 | ||
| Initial pressure loss (MPa) | ≤0.01 | ||
| coarse filtration precision(μm) | 100 | ||
| Secondary filtration accuracy (μm） | 3、5、10 | ||
| Three-stage filtration accuracy (μm) | 1、3、5 | ||
| Motor power (kw) | 0.75 | 1.1 | 2.2 |
| Voltage (V) | AC 380V three phase 50Hz | ||
| Weight (kg) | 135 | 150 | 156 |
| Demension(mm) | 950X560X900 | 950X560X900 | 1100X6600X1000 |
Note: * - Filtration accuracy, such as 03 for 3 microns, ** - Filter media, omitted: normal hydraulic oil; BH: water - glycol, V: phosphate ester hydraulic oil.
