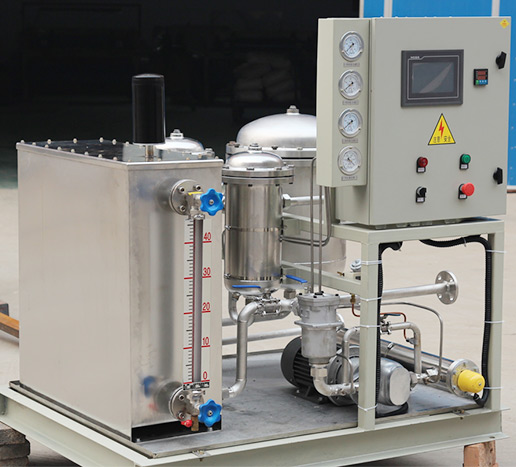

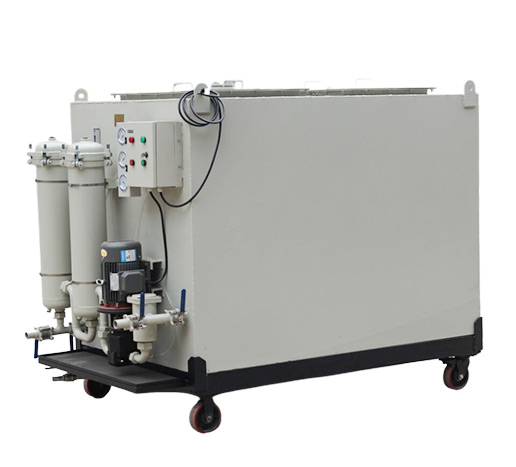

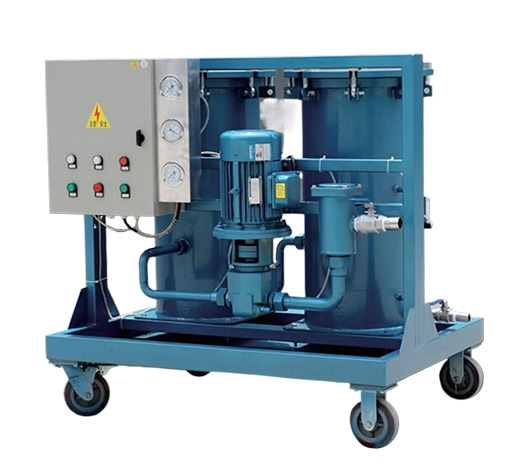

The high-pollution oil filter unit is a self-developed one for high-content solid particles in oil in order to meet the market demand. It is suitable for waste oil regeneration and clarification filtration of food oil. A filter unit that uses a polymer filter element as a filter element to remove highly contaminated solid particles from the oil.
Whatsapp:
+8613569807092E-mail:
sales@world-filters.comThe special filter material is used as the filter element, and the filter layer has a large thickness, which is 10 to 15 times of the general filter material, and has high filtration efficiency, and can effectively remove suspended matter, particles, rust and the like in the liquid. The gradient empty diameter structure is adopted, and the outer diameter of the filter is small and small, and has a deep filtering effect. Scientific design, compact structure, can withstand high filtration pressure. Unique deep mesh structure with extremely high dirt holding capacity. The filter element has a single component, stable chemical properties and good compatibility with the medium.
（1）Filtration of hydraulic lubrication systems when refueling
（2）Bypass filtration when hydraulic lubrication system is in operation
（3）Cyclic filtration before the hydraulic lubrication system is put into operation
（4）The oil of the hydraulic lubrication system is pumped out without the pump （5）Filter of the equipment itself.
Products
|
Model |
LYC-G35 -*/* |
LYC-G50 -*/* |
LYC-G100 -*/* |
LYC-G150-*/* |
|
|
Norminal flow rate (L/min) |
35 |
50 |
100 |
150 |
|
|
Norminal pressure (MPa) |
0.6 |
||||
|
Initial pressure loss (MPa) |
≤0.01 |
||||
|
Coarse filtration(μm) |
180、120 |
||||
|
Clarification filtration |
5、10、20 |
||||
|
Fine filtration (μm) |
1、3 |
||||
|
Motor power (kw) |
0.75 |
1.1 |
2.2 |
3.0 |
|
|
Voltage (V) |
AC 380V three phase 50Hz |
||||
|
Weight (kg) |
220 |
280 |
470 |
580 |
|
|
Demension(mm) |
900X600X1080 |
1000X600X1080 |
1200X880X1280 |
1200X880X1020 |
|
Note: * - Filtration accuracy, such as 03 for 3 microns, ** - Filter media, omitted: normal hydraulic oil; BH: water - glycol, V: phosphate ester hydraulic oil.
