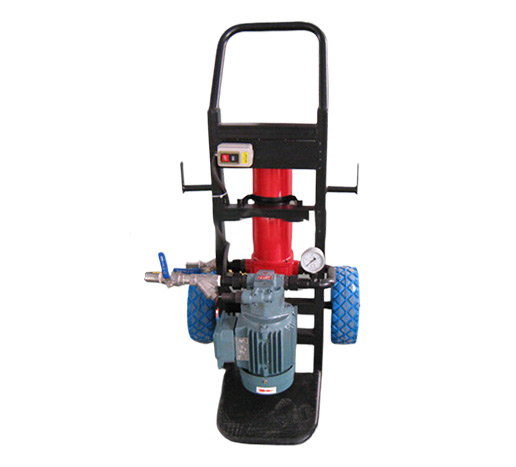

The mobile oil purifier is small in size, light in weight, flexible in function and reliable in price. It is composed of a secondary filter. A strainer is installed at the inlet of the oil pump to filter out large particulate pollutants, protect the oil pump and extend the fineness.
Whatsapp:
+8613569807092E-mail:
sales@world-filters.comThe mobile oil purifier is small in size, light in weight, flexible in function and reliable in price. It is composed of a secondary filter. A strainer is installed at the inlet of the oil pump to filter out large particulate pollutants, protect the oil pump and extend the fineness. The life of the filter. The oil filter housing mounted on the oil purifier has a quick-opening structure, which requires a simple tool to quickly and quickly open the upper cover and replace the filter element. The pressure gauge is installed on the panel. During operation, the operating condition of the system and the pollution degree of the filter element are continuously indicated. The motor is protected by thermal relay to prevent motor damage caused by motor overload. The fine filter can select different precision according to different needs of users. To achieve the desired result.
Nowoven sintered fiber felt is used for several (fine, deep or sub micron) filtration applications as followings:
1) Chemical fiber and thin film industry: polyester, polyester, polyester and other polymer melt filtration and purification, making melt filter element, textile parts filter layer.
2) Filter and dust removal of various high-temperature and corrosive gases in petroleum, chemical industry and metallurgy fields.
3) Filtering of various high-temperature and corrosive liquids in petroleum and chemical fields.
4) Precision filtration of hydraulic oil and lubricating oil in machinery, ships, electric power, electronics, aviation, aerospace and other fields.
5) Clarification and filtration of various liquids in the pharmaceutical, biological and beverage industries.
|
Model |
LYC-D25 -*/* |
LYC-D50 -*/* |
LYC-D100 -*/* |
LYC-D150-*/* |
|
|
Norminal flow rate (L/min) |
25 |
50 |
100 |
150 |
|
|
Norminal pressure (MPa) |
0.6 |
||||
|
Initial pressure loss (MPa) |
≤0.01 |
||||
|
coarse filtration precision(μm) |
100 |
||||
|
Fine filtration precision (μm) |
3,5,10,20,40 |
||||
|
Motor power (kw) |
0.55 |
1.1 |
2.2 |
3.0 |
|
|
Voltage (V) |
AC 380V three phase 50Hz |
||||
|
Weight (kg) |
35 |
80 |
100 |
135 |
|
|
Demension(mm) |
4300X3500X950 |
650X680X1020 |
720X750X1020 |
720X680X1020 |
|
Note: * - Filtration accuracy, such as 03 for 3 microns, ** - Filter media, omitted: normal hydraulic oil; BH: water - glycol, V: phosphate ester hydraulic oil.
Thanks for your interest. To receive more product information, price, catalog, etc. Please fill out the form bellow. We will get back to you within 24 hours.
For more than 30 years, we have provided high quality filtration products to domestic and foreign customers, such as SS316L sintered fiber felts, SS316L multilayer wire mesh, SS312 sintered fiber felts, sintered special performated screen, sintered metal powder elements, and other sintered filter materials, filter elements and filtration equipment systems.
