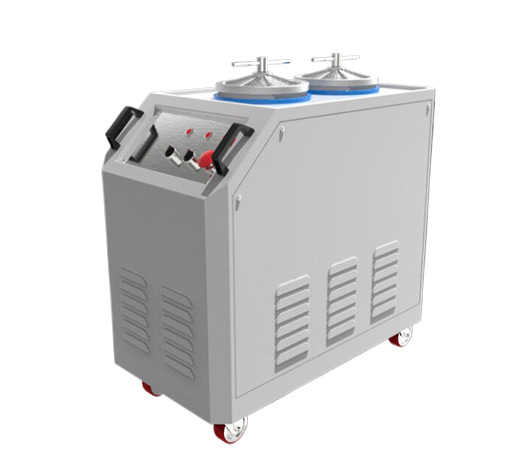

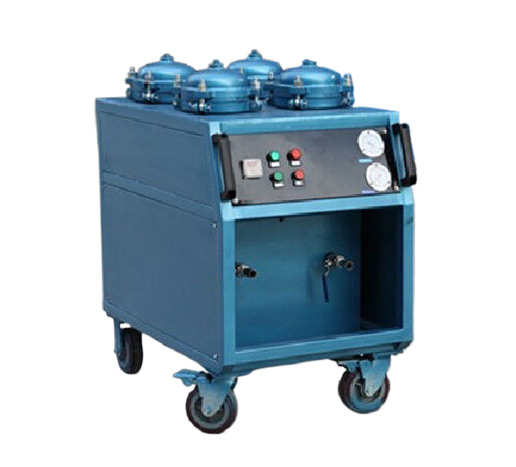

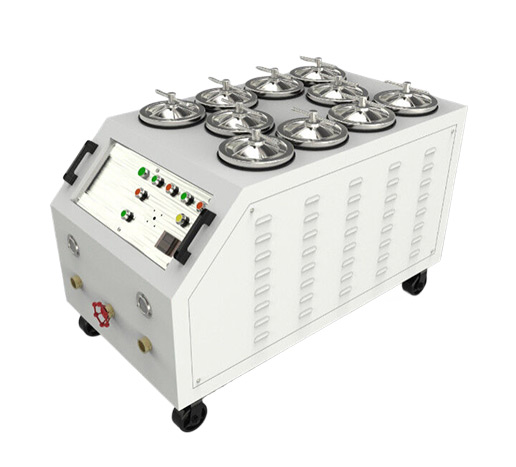

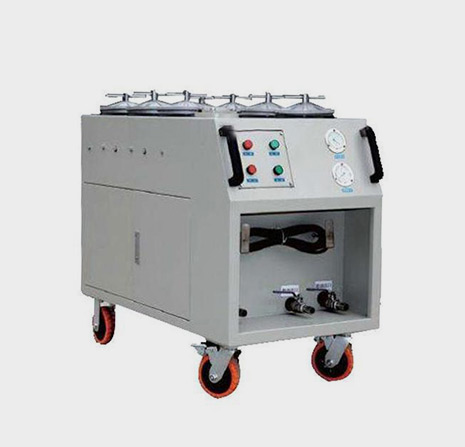

The ultra-fine filter continuously purifies the oil and quickly removes contaminated particles and moisture from the oil. The filtered accuracy is up to NAS1638-3 and is typically used for offline filtering or online bypass loop filtering. A device for cleaning large hydraulic drive systems, lubricating systems, and filtering liquids in a cooling system.
Whatsapp:
+8613569807092E-mail:
sales@world-filters.comThe ultra-fine filter is equipped with a long-path filter with an absolute accuracy of 3 microns (meaning that 98.7% of solid particles are larger than 3 microns, about 50% of solid particles are larger than 0.8 microns can be blocked in one filtration), very high dirt and Fiber-based filter elements are used to remove particulate matter, adsorb oil degradants (oxides, resins/sludges, varnishes) and absorb oily water and free water.
The ultra-fine filter is designed from a variety of mechanisms, including optional preheaters, drip pans, casters, and pre-filters. According to the user's use, use conditions, oil types, oil viscosity, precision requirements and other different needs, to provide you with practical use and non-standard production.
The filter element is made by filtering cellulose. When the polluted oil passes through the surface of the filter core, large particles are isolated and then continue to flow into the upper layer of the low-density filter element to filter the remaining large particles, but the fine particles can still pass, avoiding The upper layer of the filter element is blocked, and the tapered channel of the filter element distributes the particles evenly in the fiber, thereby increasing the amount of dirt in the filter element. Finally, the high-density filter element captures micron-sized particles.
（1）Filtration of hydraulic lubrication systems when refueling
（2）Bypass filtration when hydraulic lubrication system is in operation
（3）Cyclic filtration before the hydraulic lubrication system is put into operation
（4）The oil of the hydraulic lubrication system is pumped out without the pump （5）Filter of the equipment itself.
Products
|
Model |
LYC-GJM2 -*/* |
LYC-GJM4 -*/* |
LYC-GJM6 -*/* |
LYC-GJM7-*/* |
|
|
Norminal flow rate (L/min) |
5 |
10 |
20 |
25 |
|
|
Norminal pressure (MPa) |
1.6 |
||||
|
Initial pressure loss (MPa) |
≤0.25 |
||||
|
Coarse filtration(μm) |
100 |
||||
|
Fine filtration (μm) |
NAS1638 3-6level |
||||
|
Motor power (kw) |
0.2 |
0.4 |
0.75 |
0.75 |
|
|
Voltage (V) |
AC 380V three phase 50Hz |
||||
|
Weight (kg) |
85 |
110 |
120 |
130 |
|
|
Demension(mm) |
380X500X680 |
600X500X680 |
1100X500X1000 |
1100X500X1000 |
|
Note: * - Filtration accuracy, such as 03 for 3 microns, ** - Filter media, omitted: normal hydraulic oil; BH: water - glycol, V: phosphate ester hydraulic oil.
Thanks for your interest. To receive more product information, price, catalog, etc. Please fill out the form bellow. We will get back to you within 24 hours.

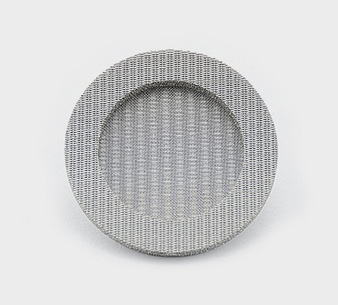

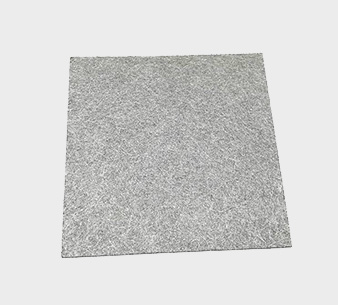

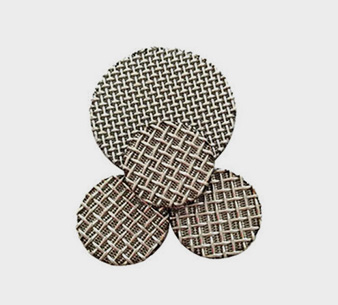

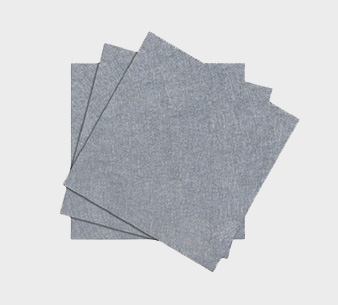

For more than 30 years, we have provided high quality filtration products to domestic and foreign customers, such as SS316L sintered fiber felts, SS316L multilayer wire mesh, SS312 sintered fiber felts, sintered special performated screen, sintered metal powder elements, and other sintered filter materials, filter elements and filtration equipment systems.
