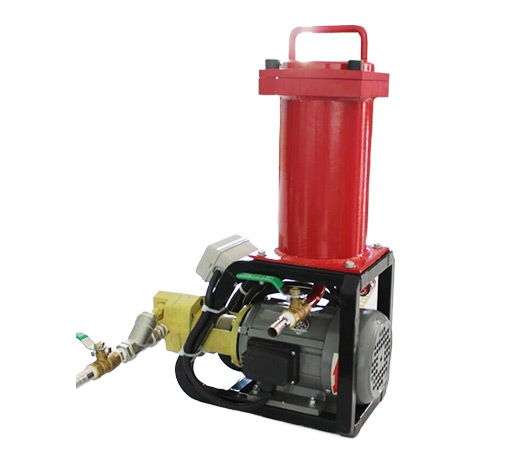

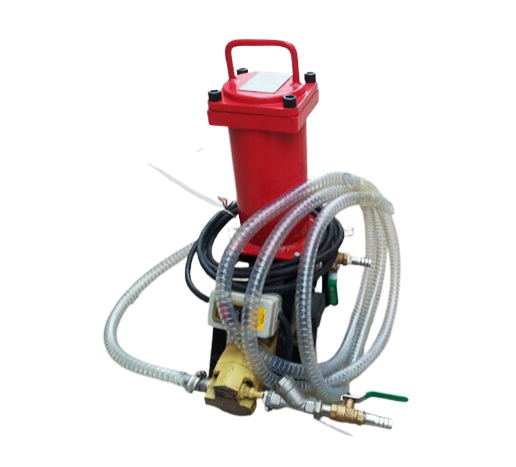

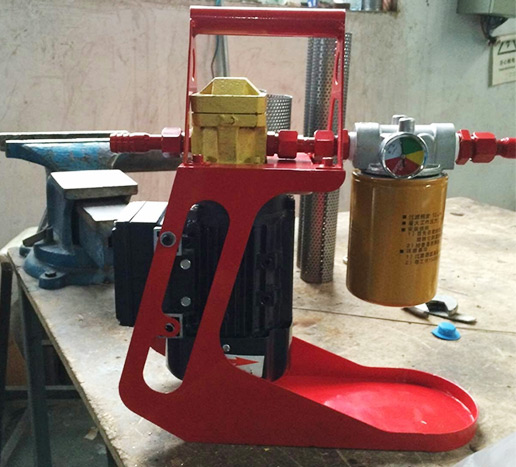

The portable oil filter can filter and filter various mechanical hydraulic lubrication equipment at any time in the outdoor open air and can purify the oil. This oil filter is an ultra-portable refueling and oil filter machine developed by our company.
Whatsapp:
+8613569807092E-mail:

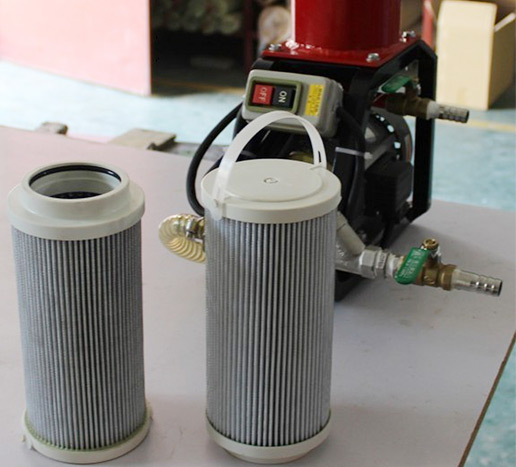

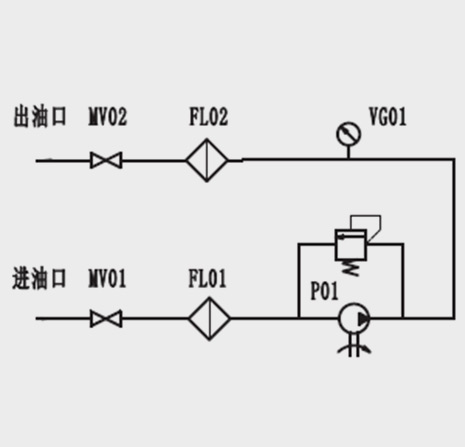

sales@world-filters.comThe portable oil filter can filter and filter various mechanical hydraulic lubrication equipment at any time in the outdoor open air and can purify the oil. This oil filter is an ultra-portable refueling and oil filter machine developed by our company. It consists of a coarse filter and a main fine filter, respectively, and also includes a gear oil pump driven by a motor. The suction port coarse filter protects the oil pump and extends the life of the main filter. The fine filter can select different precision according to different needs of users to achieve the desired result.
（1）Filtration of hydraulic lubrication systems when refueling
（2）Bypass filtration when hydraulic lubrication system is in operation
（3）Cyclic filtration before the hydraulic lubrication system is put into operation
（4）The oil of the hydraulic lubrication system is pumped out without the pump
（5）Filter of the equipment itself.
Products
|
Model |
BLYJ-6 -*/** |
BLYJ-10 -*/** |
BLYJ-16-*/** |
||
|
Norminal flow rate (L/min) |
6 |
10 |
16 |
||
|
Norminal pressure (MPa) |
0.4 |
||||
|
Initial pressure loss (MPa) |
≤0.02 |
||||
|
coarse filtration precision |
40 mesh |
||||
|
Fine filtration precision (μm) |
3,5,10,20,40 |
||||
|
Motor power (kw) |
0.18 |
0.25 |
0.35 |
||
|
Voltage (V) |
AC 380V three phase and 220 V two phase |
||||
|
Weight (kg) |
13 |
16 |
18 |
||
|
Demension(mm) |
650X680X980 |
650X680X980 |
720X680X1020 |
||
Note: * - Filtration accuracy, such as 03 for 3 microns, ** - Filter media, omitted: normal hydraulic oil; BH: water - glycol, V: phosphate ester hydraulic oil.
